CNC technology has revolutionized manufacturing, shaping components for everything from smartphones to medical devices. This guide explores the three core CNC operations—milling, turning, and drilling—highlighting how they work, their strengths, and their essential role in modern production.
What Sets CNC Machining Apart
CNC machining refers to the use of computers to control machine tools. Unlike manual machining, CNC machines precisely direct the movement of tools, following exact instructions from digital files. This means parts are produced to tight tolerances, with superior repeatability and consistency, even across thousands of units.
While there are many types of CNC machines, the three key operations that underpin most CNC workflows are milling, turning, and drilling. Let’s break down each operation and see why they matter.

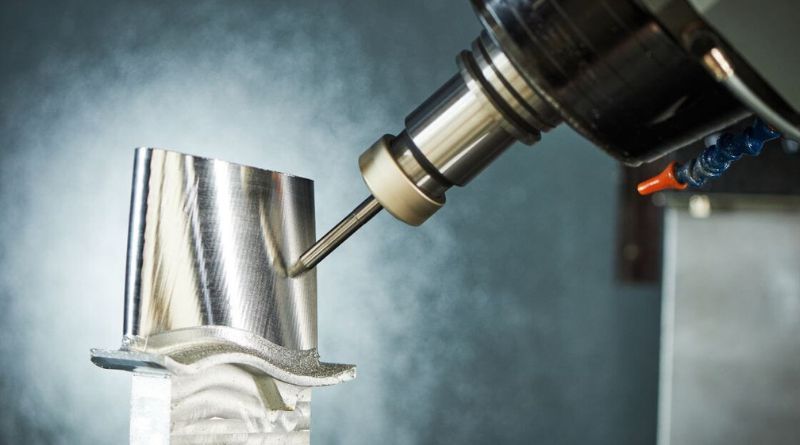

CNC Milling Unlocks Complex Geometries
Milling stands as one of the most versatile and widely-used CNC operations. At its core, milling involves removing material from a stationary workpiece using rotating cutting tools. CNC milling machines come in various styles, including vertical and horizontal mills, and multi-axis machines that can approach the workpiece from multiple directions.
Key characteristics of CNC milling
- Versatility – Suitable for flat surfaces, slots, pockets, and intricate 3D shapes.
- Precision – Achieves tight tolerances and finely detailed features.
- Material flexibility – Works on metals, plastics, composites, and even wood.
How it works:
The workpiece is clamped onto the machine bed. The cutting tool, controlled by the CNC system, rotates at high speed and moves along multiple axes (often X, Y, and Z). By tracing complex tool paths, it cuts away material layer by layer, creating the final shape.
Common applications:
- Automotive engine components
- Aerospace brackets and frames
- Custom molds and dies
- Prototypes and short-production runs
Multi-axis milling (3, 4, 5 axes and beyond) further expands the possibilities, allowing the creation of highly complex parts in a single setup.
CNC Turning Delivers Perfectly Symmetrical Parts
Turning is a machining process best suited for producing cylindrical or round parts. Unlike milling, where the tool moves and the workpiece stays put, in turning the workpiece spins at high speed while the cutting tool remains stationary (except for controlled advances into the material).
Key characteristics of CNC turning
- Efficiency – Rapidly produces round parts, such as shafts, bushings, and pins.
- Symmetry – Delivers perfect concentricity and smooth finishes.
- Automation – Enables high-volume, repeatable production.
How it works:
The material, often in the form of a bar or rod, is mounted in a chuck or collet. The CNC lathe rotates the workpiece as a stationary cutting tool moves along the desired axis, removing material to create precise external or internal features (known as turning and boring, respectively). For certain applications, processes like stainless steel passivation may be applied to enhance the durability and corrosion resistance of the finished product.
Common applications:
- Machine axles and rods
- Hydraulic pistons
- Fasteners and threaded components
- Medical implants and instrument bodies
Advanced CNC turning centers often come equipped with live tooling, enabling some milling or drilling operations on a lathe for added flexibility.
CNC Drilling Delivers Consistency Where It Matters
Drilling is one of the oldest and most essential machining processes, used to create round holes in a workpiece. Although simple in concept, modern CNC drilling achieves remarkable speed and accuracy, making it a critical step in most manufacturing processes.
Key characteristics of CNC drilling
- Accuracy – Consistently places holes in precise locations.
- Speed – Rapidly creates multiple holes as part of a production cycle.
- Repeatability – Ensures every hole matches the digital design.
How it works:
A rotating drill bit is pressed perpendicularly into the workpiece to create a hole of desired diameter and depth. With CNC, drilling operations can be repeated across multiple locations with millimeter or even micron accuracy.
Common applications:
- Mounting holes in electronic casings
- Fluid passages in engine blocks
- Fastener holes in construction components
- Medical and aerospace assemblies
Many CNC machines are designed to switch effortlessly between drilling and other operations, streamlining part production.
Integrating Milling Turning and Drilling in Modern Manufacturing
While each operation excels at its unique tasks, the power of CNC machining truly shines when these processes are combined. Many advanced CNC machines, such as mill-turn centers, can perform milling, turning, and drilling without moving the part between different machines. This reduces errors, improves efficiency, and cuts production time.
Benefits of integrated CNC operations
- Reduced setup time and costs
- Lower risk of errors or misalignment
- Shorter lead times and increased productivity
- Capability to create highly complex and precise parts
By mastering the core trio of milling, turning, and drilling, manufacturers stay agile and efficient, ready to take on the challenges of diverse applications—from one-off prototyping to mass production.
Conclusion
Whether you’re an engineer, a procurement specialist, or a manufacturing enthusiast, understanding these core CNC processes empowers better decision-making. Selecting the right process for a part’s features, tolerances, and material isn’t just about technical ability. It’s about ensuring quality, efficiency, and value at every step.
